The cable stay bridge over the river Inn
The S-shaped, 242 meters long steel
girder structure is supported by two
inclined pylons.

1.) February 2006: Submerged excavations for the two pylons
The cable stay bridge over the river Inn : 1.) February 2006: Submerged excavations for the two pylons

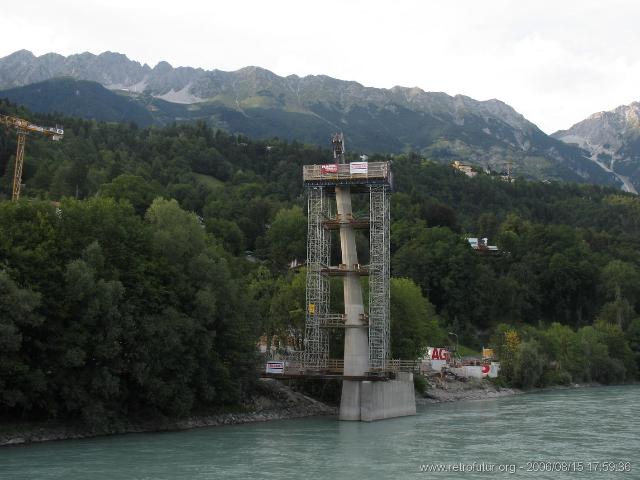

2.) 6 months later...
The cable stay bridge over the river Inn : 2.) 6 months later...




3.) 1,5 years later: Bridge and trackwork completed!
The cable stay bridge over the river Inn : 3.) 1,5 years later: Bridge and trackwork completed!




As one can notice, the bridge follows an "S" shape...
The cable stay bridge over the river Inn : As one can notice, the bridge follows an




...which requires a number of pulleys to divert the traction cables...
The cable stay bridge over the river Inn : ...which requires a number of pulleys to divert the traction cables...




A bisserl im Gebälk umeinaderkraxeln. Wofür ist es denn da ... :-)
The cable stay bridge over the river Inn : A bisserl im Gebälk umeinaderkraxeln. Wofür ist es denn da ... :-)




...but also causes a certain wear as one can notice by the black rubber powder beneath the cable.
The cable stay bridge over the river Inn : ...but also causes a certain wear as one can notice by the black rubber powder beneath the cable.




Vehicle on a test run on the bridge.
The cable stay bridge over the river Inn : Vehicle on a test run on the bridge.




The bridge before completition...
The cable stay bridge over the river Inn : The bridge before completition...




...and half a year earlier.
The cable stay bridge over the river Inn : ...and half a year earlier.




The smoothly shaped pylon and its 8 supporting cables.
The cable stay bridge over the river Inn : The smoothly shaped pylon and its 8 supporting cables.




Fixation of the bridge deck to the cable stay.
The cable stay bridge over the river Inn : Fixation of the bridge deck to the cable stay.




Extensible rail interface between fixed land base and floating bridge table.
The cable stay bridge over the river Inn : Extensible rail interface between fixed land base and floating bridge table.




Service vehicle on track
The cable stay bridge over the river Inn : Service vehicle on track




...10 months earlier
The cable stay bridge over the river Inn : ...10 months earlier




...half a year earlier
The cable stay bridge over the river Inn : ...half a year earlier




Truly your author :-)
The cable stay bridge over the river Inn : Truly your author :-)
